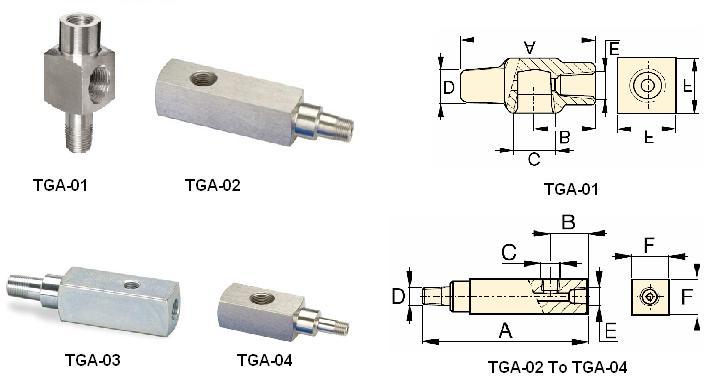

●     For easy mounting of a pressure gauge onto your system
●     Male end screws into pump or cylinder port, female end accepts hose or coupler,
        3rd port is for gauge connection

Specifications


Model

Gauge Port

Male End  (NPT)

Female End (NPT)

Measurement (mm)

A

B

C

D

E

F

TGA-01

1/2''

3/8''

3/8''

71

31

1/2''NPT

3/8''NPT

3/8''NPT

32

TGA-02

1/2''

3/8''

155

35

1/2''NPT

3/8''NPT

3/8''NPT

32

TGA-03

1/2''

3/8''

133

48

1/4''NPT

3/8''NPT

3/8''NPT

32

TGA-04

1/2''

1/4''

111

35

1/2''NPT

1/4''NPT

3/8''NPT

32

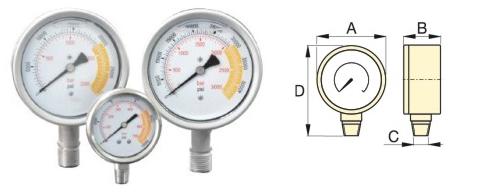

●     Pressure Range : 0-250MPa
●     Face Diameter : 63-100mm
●     Accuracy  ± 1,0 - 1,5%

Specifications


Model

Pressure Range

Measurement (mm)

A

B

C

D

TG-1025

            100MPa

63

37

1/4''NPT

84

TG-1040

100MPa

100

29

1/4''NPT

121

TG-1640

150MPa

100

29

1/4''NPT

121

TG-2540

250MPa

100

29

1/4''BSP

121
