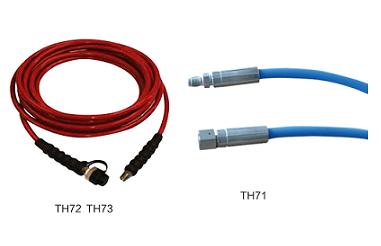

High Pressure Hoses

Author:  Date:  Read: 2034 Times



●     Material: Thermoplastic
●     100% crimped/Test in our facility
●     TH71xx Series used for Hydraulic Tensioners, Max Working pressure: 150MPa

Specifications


Model

Internal Diameter

Working Pressure

Burst Pressure

 Threads

  Length(M)

TH7103

4mm

150MPa

300MPa

1/4 BSP

0.90

TH7106

4mm

150MPa

300MPa

1/4 BSP

1.80

TH7110

4mm

150MPa

300MPa

1/4 BSP

3.00

TH7120

4mm

150MPa

300MPa

1/4 BSP

6.00

TH7203

6mm

70MPa

150MPa

 3/8-NPT

0.90

TH7206

6mm

70MPa

150MPa

 3/8-NPT

1.80

TH7210

6mm

70MPa

150MPa

 3/8-NPT

3.00

TH7220

6mm

70MPa

150MPa

 3/8-NPT

6.00

TH7303

10mm

70MPa

150MPa

 3/8-NPT

0.90

TH7306

10mm

70MPa

150MPa

 3/8-NPT

1.80

TH7310

10mm

70MPa

150MPa

 3/8-NPT

3.00

TH7320

10mm

70MPa

150MPa

 3/8-NPT

6.00
