TWS Series Square Drive Hydraulic Torque Wrench

Author:  Date:  Read: 3573 Times



●     70Mpa Max working pressure and the accuracy keep within ±3%
●     Torque range from 183N.m to 48666N.m
●     The 360*180 degree swivel is free to operation with no space limitation.

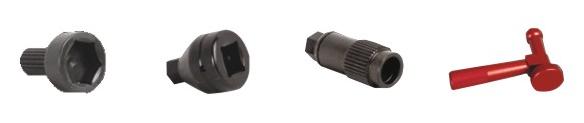

●     The square drive operate with the high intense socket and suitable with large range of bolts
●     360 degree adjustable reaction arm allows placing in any support point
●     Compact design with the raw material of advanced aluminum-titanium alloy, high intense

Specifications



Model TWS01 TWS03 TWS05 TWS10 TWS16 TWS20 TWS28 TWS35 TWS50
Torque(Nm) 183-1837 451-4512 752-7528 1078-10780 1551-15516 2062-20627 2666-26664 3572-34725 4866-48666
Nut Size(MM) 16-36 22-48 27-56 30-64 36-72 39-80 42-90 48-100 64-120

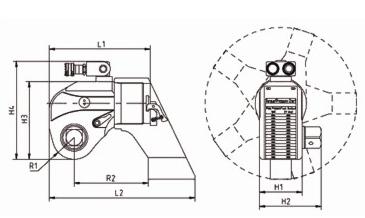

L1 130 166 198 213 231 270 295 314 355
L2 182 241 281 308 336 400 443 464 489
H1 50 68 80 90 100 110 120 137 153
H2 72 95 123 130 141 201 182 200 217
H3 99 130 155 171 187 201 228 255 290
H4 144 176 198 216 230 244 268 295 330
R1 26 34 39 47 51 44 59 67 79
R2 99 134 152 171 174 195 250 251 281
Square Drive 3/4" 1" 1-1/2" 1-1/2" 1-1/2" 2-1/2" 2-1/2" 2-1/2" 2-1/2"
 Weight(Kg) 2 4 7 9.1 13.1 18 25 31 45
