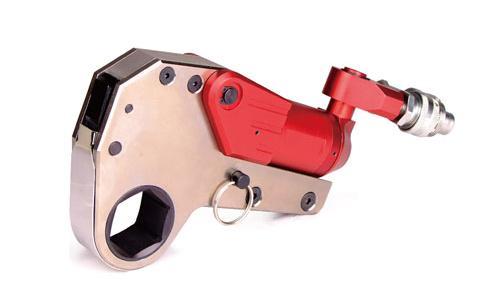

TWH Series-Hexagon Cassette Hydraulic Torque Wrench

Author:  Date:  Read: 2460 Times

●     70Mpa Max working pressure and the accuracy keep within ±3%
●     Torque range from 183N.m to 48666N.m
●     The 360*180 degree swivel is free to operation with no space limitation.
●     More accuracy and easier when the wrench direct operate on the nuts.
●     Compact design with the raw material of advanced aluminum-titanium alloy, high intense
●     Compact design with longer arm fully advances the reliability

Specifications


Model

TWHD02

TWH04

TWH08

TWH14

TWH30

Torque  Nm

206-2055

470-4705

906-9057

1616-16163

4022-40220

Bolt Size(mm)

27-50

27-65

50-90

65-115

80-155

 Weight (Kg)

2.5

5.1

9.3

15.9

30.1

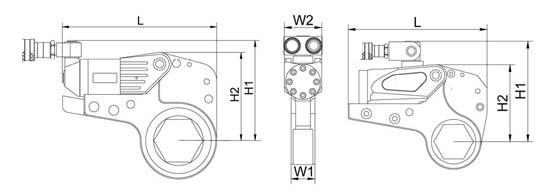

L

178

229

281

358

437

H1

130

172

198

223

304

H2

100

137

167

203

271

W1

32

42

53

64

85

W2

50

66

83

99

131
