Hight Tonnage ,Double Acting Cylinders

Author: Date: Read: 2108 Times

● Integral stop ring provides piston blow-out protection

● Chrome plated Plunger resists wear and rust and extending life

● Double Acting, hydraulically Return

● Baked enamel finish for increased corrosion resistance

● 3/8 ‘’NPT female coupler and dust cap included

Specifications

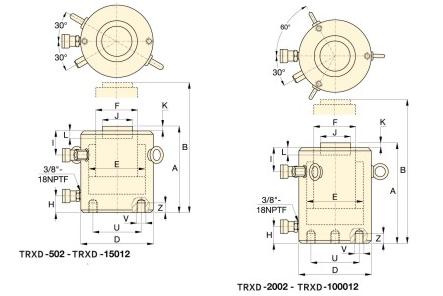

Model	Capacity	Stroke	Max.cylinder capacity		Oil capacity		Collapsed Height	Extended Height	Outside Diameter	Weight
			Max.cylinder capacity		Oil capacity		Collapsed Height	Extended Height	Outside Diameter
			Push	Pull	Push	Pull	A	B	D
	Ton(kN)	mm	Ton	Ton	cm3	cm3	mm	mm	mm	kg
TRXD-502	50(496)	50	59.1	29	392.5	200	162	212	129	17
TRXD-504		100	59.1	29	785	400	212	312	129	19.5
TRXD-506		150	59.1	29	1177.5	600	262	412	129	22
TRXD-508		200	59.1	29	1570	800	312	512	129	25.5
TRXD-5010		250	59.1	29	1962.5	1000	362	612	129	29
TRXD-5012		300	59.1	29	2355	1200	412	712	129	31.5
TRXD-1002	100(929)	50	102.9	48	664	309	179	229	165	29
TRXD-1004		100	102.9	48	1327	619	229	329	165	34
TRXD-1006		150	102.9	48	1991	928	279	429	165	40
TRXD-1008		200	102.9	48	2655	1237	329	529	165	46
TRXD-10010		250	102.9	48	3318	1546	379	629	165	53
TRXD-10012		300	102.9	48	3982	1856	429	729	165	79
TRXD-1502	150(1390)	50	153.9	75	1005	485.5	196	246	205	39
TRXD-1504		100	153.9	75	2010	971	246	346	205	52
TRXD-1506		150	153.9	75	3015	1456.5	296	446	205	65
TRXD-1508		200	153.9	75	4020	1942	346	546	205	78
TRXD-15010		250	153.9	75	5025	2427.5	396	646	205	92
TRXD-15012		300	153.9	75	6030	2913	446	746	205	105
TRXD-2002	200(1859)	50	206.1	98	1344	628	212	262	235	55
TRXD-2006		150	206.1	98	4031	1884	312	462	235	91
TRXD-20012		300	206.1	98	8061	3768	462	762	235	146
TRXD-2502	250(2562)	50	284	118	1815	763	235	285	275	89
TRXD-2506		150	284	118	5444	2289	335	485	275	136
TRXD-25012		300	284	118	10887	4578	485	785	275	207
TRXD-3002	300(3193)	50	353.6	117	2261	769	322	372	310	184
TRXD-3006		150	353.6	117	6783	2306	422	572	310	232
TRXD-30012		300	353.6	117	13566	4611	572	872	310	303
TRXD-4002	400(3919)	50	433.9	150	2860	1055	374	424	350	270
TRXD-4006		150	433.9	150	7580	3165	474	624	350	330
TRXD-40012		300	433.9	150	15160	6330	624	924	350	421
TRXD-5002	500(5118)	50	566.3	192	3651	1198	419	469	400	401
TRXD-5006		150	566.3	192	10953	3594	519	669	400	480
TRXD-50012		300	566.3	192	21906	7188	669	969	400	599
TRXD-6002	600(5983)	50	662	229	4275	1518	429	479	430	474
TRXD-6006		150	662	229	12824	4554	529	679	430	565
TRXD-60012		300	662	229	25647	9108	679	979	430	701
TRXD-8002	800(8238)	50	911.6	300	5818	1924	484	534	505	741
TRXD-8006		150	911.6	300	17454	5771	584	734	505	868
TRXD-80012		300	911.6	300	34908	11541	734	1034	505	1058
TRXD-10002	1000(10260)	50	1136	420	7258	2586	564	614	560	1062
TRXD-10006		150	1136	420	21773	7757	664	814	560	1213
TRXD-100012		300	1136	420	43545	15513	814	1114	560	1439
