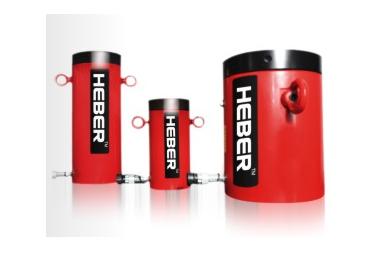

Hight Tonnage ,Lock Nut , Single Acting Cylinders

Author:  Date:  Read: 2028 Times





●     Single Acting, Load Return
●     Chrome plated Plunger resists wear and rust and extending life
●     Tilt Saddle rated capacity : 5%
●     Overflow port functions as a stroke limiter
●     Safety Lock nut for mechanical holding
●     Baked enamel finish for increased corrosion resistance
●     3/8 ‘’NPT female coupler and dust cap included

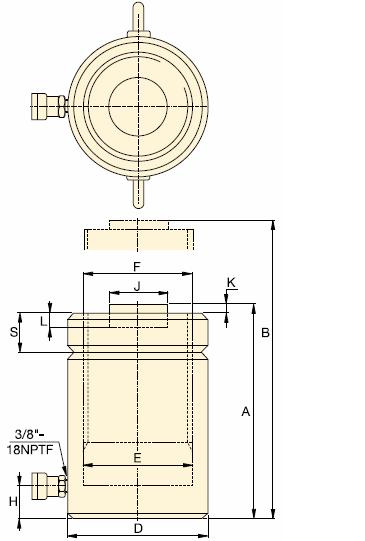

Specifications


1000(10260)

Model

Capacity

Stroke

Oil Capactiy

Collapsed Height

Extended Height

Lock Nut Height

Outside Diameter

weight

A

B

S

D

Ton(kN)

mm

cm 3

mm

mm

mm

mm

kg

TLLS-502

50(496)

50

354

164

214

36

125

15

TLLS-504

100

708

214

314

36

125

20

TLLS-506

150

1062

264

414

36

125

25

TLLS-508

200

1416

314

514

36

125

30

TLLS-5010

250

1770

364

614

36

125

35

TLLS-5012

300

2124

414

714

36

125

40

TLLS-1002

100(929)

50

663.5

187

237

44

165

30

TLLS-1004

100

1327

237

337

44

165

39

TLLS-1006

150

1990.5

287

437

44

165

48

TLLS-1008

200

2654

337

537

44

165

56

TLLS-10010

250

3317.5

387

637

44

165

64

TLLS-10012

300

3981

437

737

44

165

73

TLLS-1502

150(1390)

50

1005

209

259

44

205

53

TLLS-1504

100

2010

259

359

44

205

66

TLLS-1506

150

3015

309

459

44

205

78

TLLS-1508

200

4020

359

559

44

205

92

TLLS-15010

250

5025

409

659

44

205

104

TLLS-15012

300

6030

459

759

44

205

117

TLLS-2002

200(1895)

50

1417

243

293

50

235

83

TLLS-2006

150

4251

343

493

50

235

118

TLLS-20010

250

7085

443

693

50

235

153

TLLS-2502

250(2562)

50

1814.5

249

299

56

275

116

TLLS-2506

150

5443.5

349

499

56

275

163

TLLS-25010

250

9072.5

449

699

56

275

210

TLLS-3002

300(3193)

50

2261

295

345

60

310

173

TLLS-3006

150

6783

395

545

60

310

233

TLLS-30010

250

11305

495

745

60

310

293

TLLS-4002

400(3919)

50

2905

335

385

70

350

251

TLLS-4006

150

8715

435

585

70

350

327

TLLS-40010

250

14525

535

785

70

350

403

TLLS-5002

500(5118)

50

3651

375

425

80

400

367

TLLS-5006

150

10953

475

625

80

400

467

TLLS-50010

250

18255

575

825

80

400

568

TLLS-6002

600(5983)

50

4274.5

395

445

85

430

447

TLLS-6006

150

12823.5

495

645

85

430

563

TLLS-60010

250

21372.5

595

845

85

430

680

TLLS-8002

800(8238)

50

5818

455

505

100

505

711

TLLS-8006

150

17454

555

705

100

505

871

TLLS-80010

250

29090

655

905

100

505

1031

TLLS-10002

50

7257.5

495

545

110

560

951

TLLS-10006

150

21772.5

595

745

110

560

1143

TLLS-100010

250

36287.5

695

945

110

560

1335
