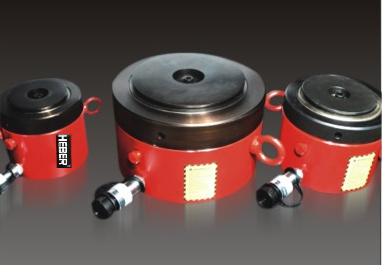

Lock Nut , Pancake ,Single Acting Cylinders

Author: Date: Read: 2027 Times

● Single Acting, Load Return

● Chrome plated Plunger resists wear and rust and extending life

● Tilt Saddle rated capacity : 5%

● Overflow port functions as a stroke limiter

● Safety Lock nut for mechanical holding

● Baked enamel finish for increased corrosion resistance

● 3/8 ‘’NPT female coupler and dust cap included

Specifications

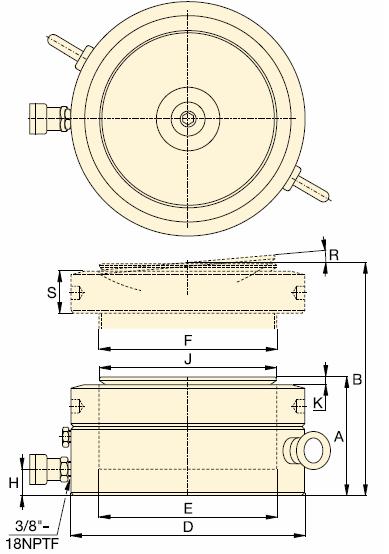

Model	Capacity	Stroke	Oil capacity	Collapsed Height	Extended Height	Lock Nut Height	Outside Diameter	Weight
	Capacity	Stroke	Oil capacity	A	B	S	D	Weight
	Ton(kN)	mm	cm3	mm	mm	mm	mm	(kg)
TLPS-602	60(606)	50	433	125.00	175.00	28	140	15
TLPS-1002	100(1027)	50	715	137.00	187.00	31	175	26
TLPS-1602	160(1619)	45	1021	148.00	193.00	40	220	44
TLPS-2002	200(1999)	45	1275	155.00	200.00	43	245	57
TLPS-2502	260(2567)	45	1633	159.00	204.00	44	275	74
TLPS-4002	400(3916)	45	2481	178.00	223.00	55	350	134
TLPS-5002	520(5114)	45	3286	192.00	237.00	62	400	189
