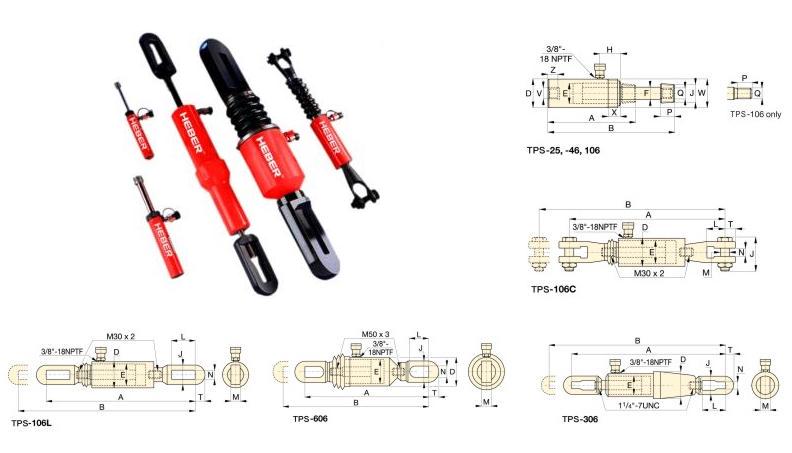

Single Acting, Pull Cylinders

Author:  Date:  Read: 2011 Times





●     High strength alloy steel construction
●     Plunger stop-ring protection to prevent rod over-extension
●     Chrome plated Plunger resists wear and rust and extending life
●     Heavy Duty Return Springs
●     Baked enamel finish for increased corrosion resistance
●     3/8 ‘’NPT female coupler and dust cap included

Specifications

Model

Capacity

Stroke

Oil capacity

Collapsed Height

Extended Height

Outside Diameter

Top to  Port

Weight

A

B

D

H

Ton (kN)

mm

cm3

mm

mm

mm

mm

kg

TPS-25

2.5(24)

127

54

265

392

49

45

1.8

TPS-46

5(51)

140

102

302

442

57

42

4.5

TPS-106

10(105)

151

227

289

440

84

39

9.5





































Model

Capacity

Stroke

Oil capacity

Collapsed Height

Extended Height

Outside Diameter

Link Holes Opening Length

Weight

A

B

D

L

Ton (kN)

mm

cm3

mm

mm

mm

mm

kg

TPS-106C*

10(105)

151

237

587

738

86

62

16

TPS-106L*

151

237

542

693

86

115

13.3

TPS-306*

30(326)

155

737

1085

1240

137

145

48.2

TPS-606*

50(505)

152

1096

720

872

139

149

53.6
