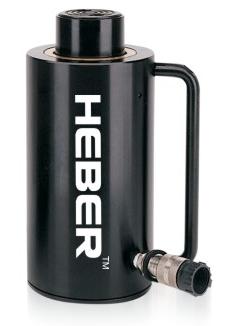

Aluminum Single Acting Cylinders

Author:  Date:  Read: 1965 Times




●     Half the weight of steel cylinders.
●     Aluminum body resists sparking in explosive environments
●     Heavy Duty Return Springs
●     Hard coated aluminum piston rod and cylinder bore resist wear and corrosion.
●     3/8 ‘’NPT female coupler and dust cap included

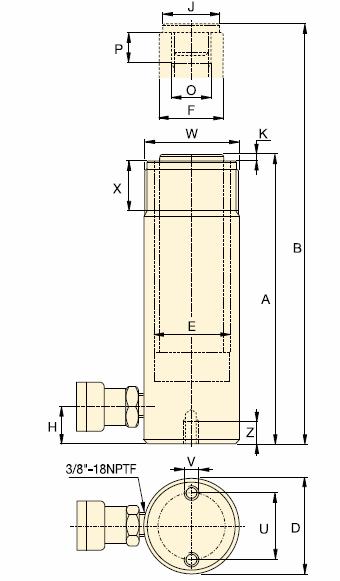

Specifications




Model

Capacity

Stroke

Oil Capacity

Collapsed Height

Extended Height

Outside Diameter

Weight

A

B

D

ton

mm

cm3

mm

mm

mm

kg

TAS-202

20

53

154

162

215

95

3.50

TAS-204

104

299

213

317

95

4.30

TAS-206

156

444

263.5

419

95

5.20

TAS-302

30

54

238

187

241

109

5.10

TAS-304

104

463

238

342

109

5.90

TAS-306

156

688

289

445

109

6.80

TAS-552

50

54

367

171

225

134.5

7.40

TAS-554

105

745

222

327

134.5

9.10

TAS-556

155

1110

273

428

134.5

11.10

TAS-1002

100

54

718

197

251

189

15.20

TAS-1006

159

2116

298.5

457.5

189

22.80
