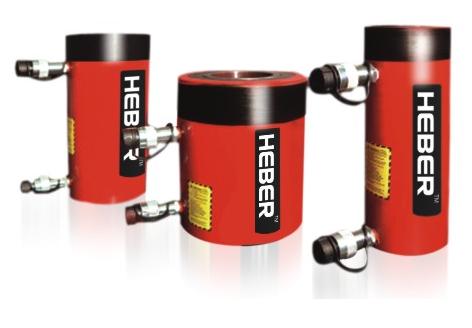

Hollow Center ,Double Acting Cylinders

Author: Date: Read: 2295 Times

● Hollow plunger design allows for both pull and push forces, widely application

● Chrome plated Plunger resists wear and rust and extending life

● Safety valves prevent damage of accidental over-load

● hydraulically retract advance and advance

● Baked enamel finish for increased corrosion resistance

● 3/8 ‘’NPT female coupler and dust cap included

Specifications

Model	Capacity	Stroke	Max.Cylinder Capacity		Oil capacity		Collapsed Height	Extended Height	Outside Diameter	Center Hole Diameter	Weight
			Max.Cylinder Capacity		Oil capacity		Collapsed Height	Extended Height	Outside Diameter	Center Hole Diameter

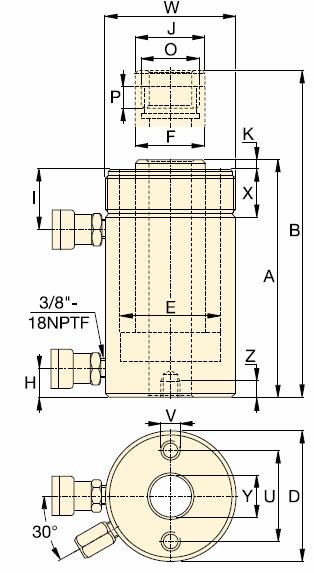

			Push	Pull	Push	Pull	A	B	D	Y
	Ton	mm	Ton	Ton	cm3	cm3	mm	mm	mm	mm	kg
THD-307	30	178	32.8	22.3	849	577	330	508	114	33.3	21
THD-3010	30	258	32.8	22.3	1231	836	431	689	114	33.3	27
THD-603	60	89	60	38.7	778	481	247	336	159	53.8	28
THD-606		166	60	38.7	1451	891	323	489	159	53.8	35
THD-6010		257	60	38.7	2246	1388	438	695	159	53.8	45
THD-1001	100	38	93	60	514	331	165	203	212	79.2	33
THD-1003		76	93	60	1027	662	254	330	212	79.2	61
THD-1006		153	93	60	2069	1333	342	495	212	79.2	79
THD-10010		257	93	60	3475	2239	460	717	212	79.2	107
THD-1508	150	203	135.4	70.2	3995	2074	349	552	247	79.2	111
