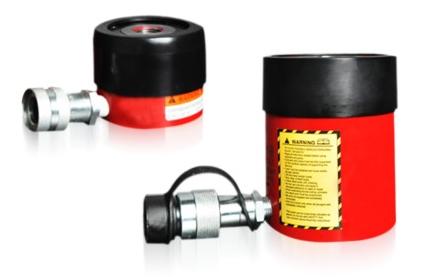

Hollow Center ,Single Acting Cylinders

Author:  Date:  Read: 2248 Times



●     Hollow plunger design allows for both pull and push forces, widely application
●     Chrome plated Plunger resists wear and rust and extending life
●     Heavy Duty Return Springs
●     Baked enamel finish for increased corrosion resistance
●     3/8 ‘’NPT female coupler and dust cap included

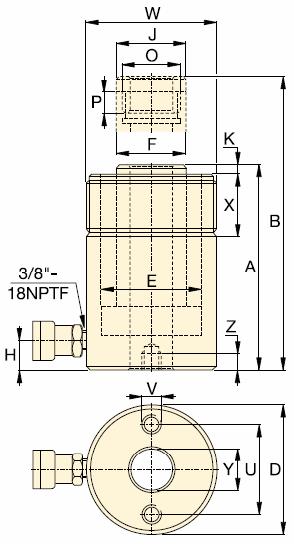

Specifications



Model

 Capacity

Stroke

Oil Capacity

Collapsed Height

Extended Height

Outside Diameter

Center Hole  Diameter

Weight

A

B

D

 Y

Ton(kN)

mm

cm3

mm

mm

mm

mm

kg

THS-120

13(125)

8

14.7

55

63

69

19.6

1.50

THS-121

42

77.3

120

162

69

19.6

2.80

THS-1211

42

77.3

120

162

69

19.6

2.80

THS-123

76

140

184

260

69

19.6

4.40

THS-202

20(215)

49

161

162

211

99

26.9

7.70

THS-206

155

508

306

461

99

26.9

14.10

THS-302

30(326)

64

307

179

243

114

33.3

10.90

THS-306

155

744

330

485

114

33.3

21.80

THS-603

60(576)

76

664

247

323

159

53.8

28.10

THS-606

153

1337

323

476

159

53.8

35.40

THS-1003

100(931)

76

1028

254

330

212

79

59.90
