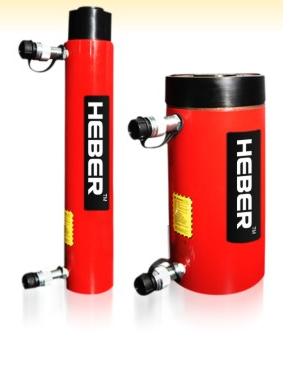

Double Acting Cylinders

Author:  Date:  Read: 2232 Times


●     Collar Threads ,Plunger threads and base mounting holes for easy fixturing
●     Chrome plated Plunger resists wear and rust and extending life
●     Removable hardened saddles protect during lifting and pressing.
●     Baked enamel finish for increased corrosion resistance
●     Long Stroke, High cycle
●     Built-in safety valve prevents accidental over-loaded
●     3/8 ‘’NPT female coupler and dust cap included

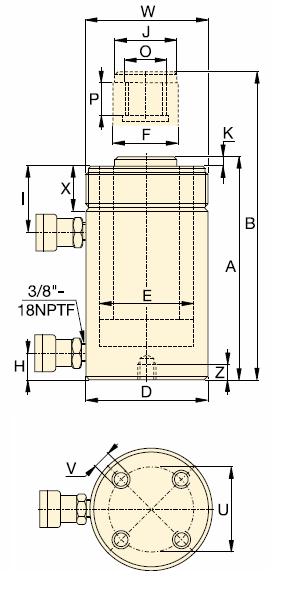

Specifications


Model

Capacity

Stroke

Max.Cylinder Capacity

Oil Capacity

Collapsed   Height

Ext.height

Outside Diameter

Weight

Push

Pull

Push

Pull

A

B

D

　

Ton(kN)

mm

ton

ton

cm3

cm3

mm

mm

mm

kg

TD-1010

10(101)

254

10

3.4

369

124.5

409

663

73

12

TD-1012

305

10

3.4

443

149.5

457

762

73

14

TD-308

30(295)

209

30.9

5.6

923.8

426.4

387

596

102

18

TD-3014

368

30.9

5.6

1626.6

769

546

917

102

29

TD-506

50(498)

156

48.7

14.2

1104.5

321.4

331

487

127

30

TD-5013

334

48.7

14.2

2364.7

688

509

843

127

52

TD-5020

511

48.7

14.2

3617.9

1052.7

733

1244

127

68

TD-756

75(718)

156

72.5

22.7

1619.3

514.8

347

503

146

41

TD-7513

333

72.5

22.7

3456.5

1098.9

525

858

146

68

TD-1006

100(933)

168

91.3

42.5

2229.4

1038.2

357

525

177

61

TD-10013

333

91.3

42.5

4418.9

2057.9

524

857

177

93

TD-10018

460

91.3

42.5

6104.2

2842.8

687

1147

177

117

TD-1502

150(1386)

57

140

68

1145.7

553.5

196

253

204

49

TD-1506

156

140

68

3135.6

1514.8

385

541

204

93

TD-15013

333

140

68

6693.3

3233.4

582

915

204

124

TD-2006

200(1995)

152

198

98

5526.3

2132.6

430

582

247

147

TD-20013

330

198

98

11998

4629.9

608

938

247

199

TD-3006

300(3201)

153

316

164

6918.7

3647.5

485

638

311

200
