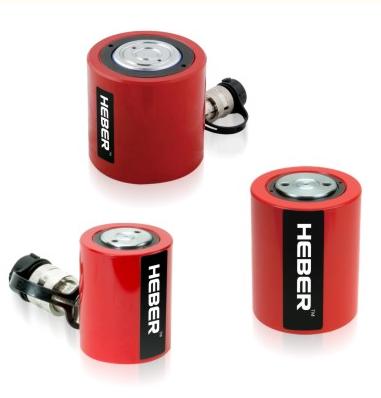

Low Height ,Single Acting Cylinders
Author: Date: Read: 2315 Times
● Light Height, Lowe Profile design
● Single Acting, Spring return
● Chrome plated Plunger resists wear and rust and extending life
● Baked enamel finish for increased corrosion resistance
● 3/8 ‘’NPT female coupler and dust cap included

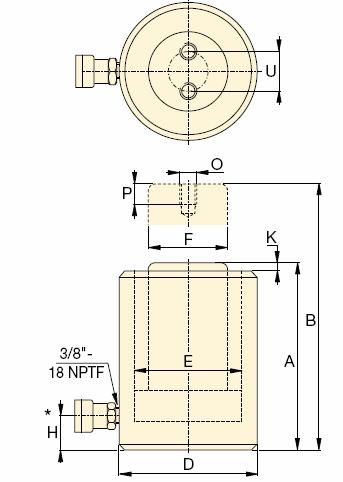

Specifications
Model |
Capacity |
Stroke |
Oil Capacity |
Collapsed Height |
Extened Height |
Outside Diameter |
Weight |
A |
B |
D | |||||
Ton(kN) |
mm |
cm3 |
mm |
mm |
mm |
KG | |
TLS-101 |
10 (101) |
38 |
55 |
88 |
126 |
69 |
4.10 |
TLS-201 |
20(201) |
44 |
126 |
99 |
143 |
92 |
5.10 |
TLS-302 |
30(295) |
62 |
260 |
118 |
180 |
102 |
6.80 |
TLS-502 |
50(435) |
60 |
373 |
122 |
182 |
124 |
10.90 |
TLS-1002 |
100(887) |
57 |
723 |
141 |
198 |
164 |
22.70 |
