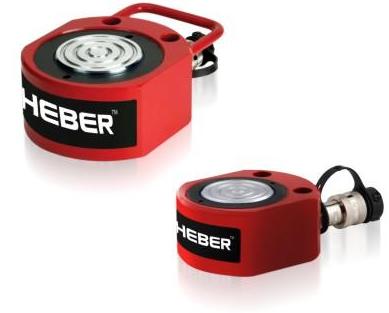

Flat Pad, Single Acting Cylinders

Author:  Date:  Read: 2159 Times



●     Compact, Flat pad design
●     Single Acting, Spring return
●     Chrome plated Plunger resists wear and rust and extending life
●     Baked enamel finish for increased corrosion resistance
●     3/8 ‘’NPT female coupler and dust cap included

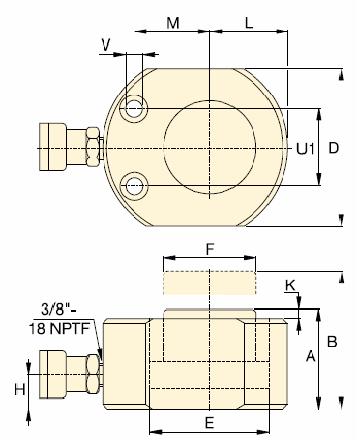

Specifications

Model

Capacity

Stroke

Oil Capacity

Collapsed Height

Extended Height

Outside Diameter

Weight

A

B

D

Ton(kN)

mm

cm3

mm

mm

mm

KG

TFS-50

5 (45)

6

4.3

33

39

59×42

1.00

TFS-100

10(101)

12

16

43

55

83×56

1.40

TFS-200

20(201)

11

31

52

63

101×76

3.10

TFS-300

30(295)

13

55

59

71

117×95

4.50

TFS-500

50(435)

16

99

67

83

140×114

6.80

TFS-750

75(718)

16

164

80

95

165×139

11.40

TFS-1000

100(887)

16

203

86

102

178×153

14.50

TFS-1500

150(1386)

16

317

100

116

215×190

26.30
