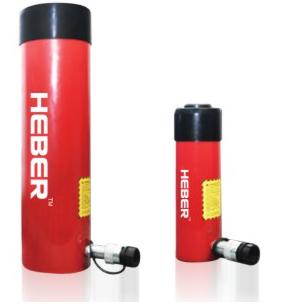

General Purposes , Single Acting Cylinders

Author: Date: Read: 3203 Times

● Collar Thread permits easy fixturing

● Chrome plated Plunger resists wear and rust and extending life

● Heavy Duty Return Springs

● Baked enamel finish for increased corrosion resistance

● 3/8 ‘’NPT female coupler and dust cap included

Specifications

Model	Capacity	Stroke	Oil Capacity	Collapsed Height	Extended Height	Outside Diameter	Weight

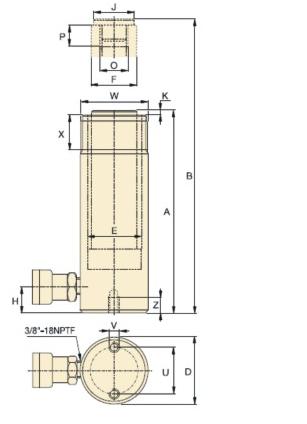

	Capacity	Stroke	Oil Capacity	A	B	D	Weight
	Ton(kN)	mm	cm3	mm	mm	mm	KG
TS-50	5(45)	16	11	41	57	59X42	1.00
TS-51		25	17	110	135	38	1.00
TS-53		76	53	165	241	38	1.50
TS-55		127	87	216	343	38	1.90
TS-57		178	123	273	451	38	2.40
TS-59		232	160	324	556	38	2.80
TS-101	10(101)	25	38	90	115	57	1.80
TS-102		54	78	121	175	57	2.30
TS-104		105	151	171	276	57	3.30
TS-106		156	225	248	404	57	4.40
TS-108		203	294	298	501	57	5.40
TS-1010		257	370	349	606	57	6.40
TS-1012		305	440	400	705	57	6.80
TS-1014		356	515	451	807	57	8.20
TS-151	15 (142)	25	52.5	124	149	69	3.30
TS-152		51	107.5	149	200	69	4.10
TS-154		102	214	200	302	69	5.00
TS-156		152	319	272	424	69	6.80
TS-158		203	420	322	525	69	8.20
TS-1510		254	533	373	627	69	9.50
TS-1512		305	640	424	729	69	10.90
TS-1514		356	747	475	831	69	11.80
TS-251	25 (245)	25	85	140	165	86	5.90
TS-252		51	169	165	216	86	6.40
TS-254		102	339	216	318	86	8.20
TS-256		159	528	273	432	86	10.00
TS-258		210	697	324	534	86	12.30
TS-2510		260	863	375	635	86	14.10
TS-2512		311	1033	425	736	86	16.30
TS-2514		362	1202	476	838	86	17.70
TS-308	30 (295)	210	919	387	597	102	18.10
TS-502	50(498)	51	362	176	227	127	15.00
TS-504		102	722	227	329	127	19.10
TS-506		159	1127	283	442	127	23.20
TS-5013		337	2388	461	798	127	37.70
TS-756	75(719)	156	1619	286	442	146	29.50
TS-7513	75(719)	334	3467	492	826	146	59.00
TS-1006	100 (934)	168	2225	357	525	178	59.00
TS-10010	100 (934)	260	3445	449	709	178	72.60
